Prerequisites for Oracle Clinical
Database Installation &
Oracle
Clinical DB Installation
Create a
log directory in”opa_home”
i.e /home/opapps/log
Copy
tnsnames.ora file from oracle 12C DB to OPA_HOME
Change
.bashsrc file
Modify
.bash_profile as per below to set variables.
If you
type env in the terminal prompt as a opapps user it should be like the
following way
Following is the bash profile for opapps user
# .bash_profile
# Get the aliases and functions
if [ -f ~/.bashrc ]; then
. ~/.bashrc
fi
# User specific environment and startup programs
export ORACLE_HOME=/u01/app/oracle/product/12.1.0.1/dbhome_1
export OPA_HOME=/home/opapps
export RXC_LOG=$OPA_HOME/log
PATH=$PATH:$HOME/bin
export PATH
Following is the .bashsrc file
# .bashrc
# Source global definitions
if [ -f /etc/bashrc ]; then
. /etc/bashrc
fi
# User specific aliases and functions
export XX=x
export PATH=$PATH:.
~
~
Oracle
Clinical DB Installation
Login as
opapps user go to the location where you have uzipped the software
Now run
The runinstaller.
Launches
the GUI interface
Step1:
Welcome screen click on next
Step2:
Select
OC database Install 5.1.0.0.2.0
Click on
next button
Step3:
Using
browse option select the ORACLE_HOME path of the 12C database location.
Click on
next button.
Step4:
Select
OPA_HOME
Mine is
/home/opapps
Click on
next
Step5:
Choose a
sas view directory which we have selected earlier in the oracle clinical server
software installation.
Click on
next button
Step6:
My 12C
database service name is cdb.NULL
Provide
the service name for database as cdb.NULL then click next button.
Step7:
Enter
the Database server as :oracle129.bourntec.com(my oracle 12C hostname)
DB port
no is:1521(Listener running on port no.)
Click on
next button.
Step8:
Provide
table spaces 12C database datafiles location
Click on
next button.
Step9:
Provide
same location for index tablespace data files also as selected in the previsous
step
Click on
next button
Step10:
Choose
the wallet location same as which is selected in while installation oracle
clinical software
Click on
next
Step11:
Enter
wallet password
Mine is xxxxxxxxx and confirm the same.
Click on
next
Step12:
Enter
sys password oracle12C database
Mine is xxxxxxx and confirm
the same
Click on
next button.
Step13:
Enter
the system password
Step14 to Step 29:Find the following screen shots
Enter
the RXC_MAA password
I have
give as xxxxxx and confirm the same
Click on
next.
Note this also in application
server you needto give same password
Enter
the RDC_MIDTIER_PROXY password
I have
give as Oracle12 and confirm the same
Click on
next.
Step30:
You can
enter database seed number between 1 and 99 I have entered 1
Step31:
Please
provide DBHostname(your hostname where 12C DB located host)
Defult
will be there as 1570 change it DBport no as 1521
Step32:
You can
enter any location click on next
Step33:
You can
enter any locaton
Step34:
Create a directory under
OPA_HOME (or) any other location to
store secretstore directory under this create a directory with DB name

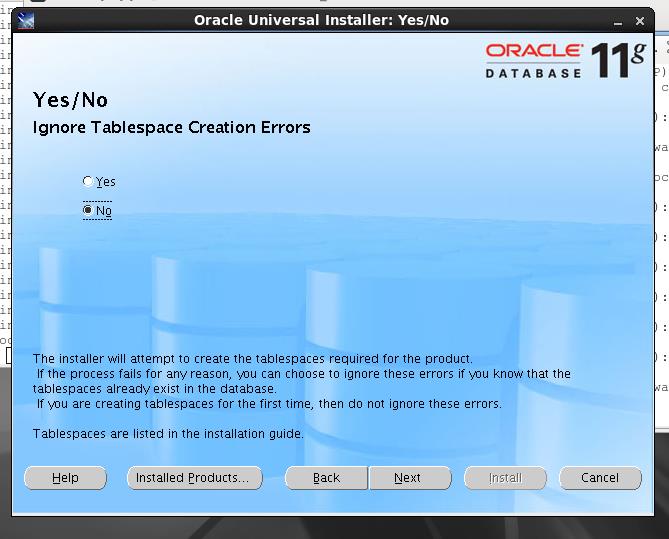

Step35:
Select ignore tablespace
creation errors as no then click on next button.
Step36:
Information
screen will be displayed. Click on next
Step37:
Summary
screeen click on Install button
Step38:
Installation
process will start and reach to 100%
Step39:
Next
will be the end of installation click on exit
Note down the path's after installation .
That’s
finishes the installation of Oracle Clinical Database.
Post Innstallation steps:
Set the Database Time Zone
The
Oracle Clinical Remote Data Capture Onsite (RDC Onsite) application uses the
dbtimezone value for internal calculations when the Display timestamps in local
timezone preference is set. Oracle recommends setting time zone to a named
location rather than a numeric offset so that standard and daylight time
adjustments are made automatically. You can find valid named location strings
in the V$TIMEZONE_NAMES view. For example, to find a time zone in the United
States, enter the following query:
SELECT distinct tzname FROM V$TIMEZONE_NAMES
WHERE tzname like 'US/%'
To set
the time zone in the database:
1.
Connect to the database as any user that has ALTER DATABASE privileges.
2. Enter
the following command: alter database set time_zone='tzname_value’; For
example:
alter
database set time_zone='US/Eastern’;
2 Pin Database Packages
To
improve performance, some of Oracle Clinical's packages are pin-able packages.
Pinning allocates a stable memory location so that a package cannot be
subjected to being swapped out of memory. Oracle Clinical provides the
rxcdbinit.sql script to pin the database packages.
4.4.2.1 Pin UNIX Database Packages
To pin the database packages located on a UNIX server:
1. Log
in to the UNIX server computer as the opapps user.
2. Set the UNIX environment: opa_setup
database_name code_environment
3.
Change to the RXC_INSTALL directory: cd $RXC_INSTALL
4.
Connect to SQL*Plus as the rxc user: sqlplus rxc/password
5. Run
the rxcdbinit.sql script: start rxcdbinit.sql The script pins the database
packages and exits upon completion.
